All-electric reefer unit for light trucks, 12-14 m³ box.
FULL DC ELECTRIC, Low voltage, DC12V or DC24V. more safety
Designed for both electric and engine-powered light reefer trucks.
No vehicle modifications are needed, and no need engine working.
Truck reefer units are driven by the vehicle's battery or Auxiliary battery pack. This means there is no need to install a road compressor and drive kit in the engine compartment, your refrigerated truck can operate its original AC system.
The AC110V or AC220V/AC240V electric stand-by is optional.
All models give you the convenience of all-electric operation for fresh and frozen goods.

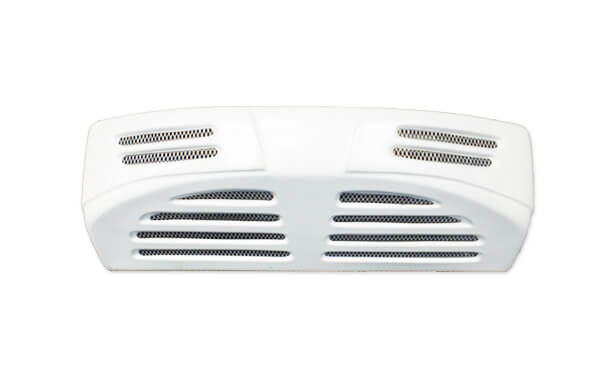

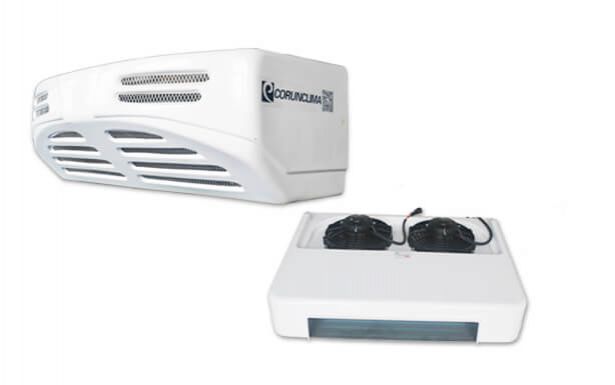

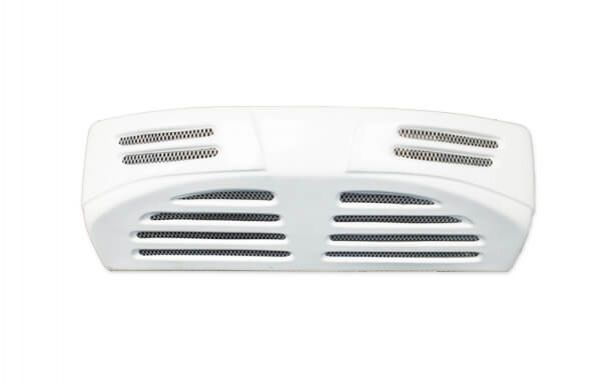

1. Front Nose mounted condenser, light weight design, and corrosion free solution.

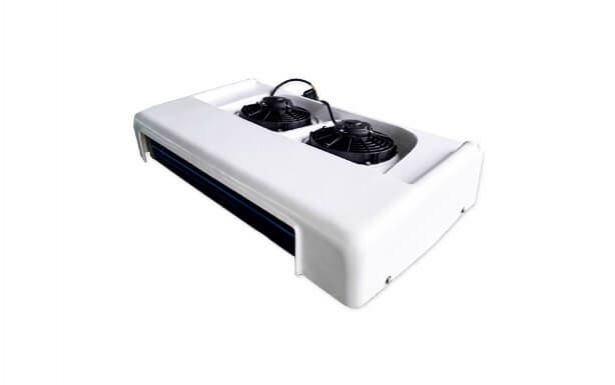

2. Ultra slim evaporator are easily-installed, space-saving, more load goods.
3. Low cost and low maintenance start from high-quality interior components and unique technique we use.
4. Meets Last-Mile and nigh delivery.
5. Operation Safety. Low battery voltage protection and pressure protection.

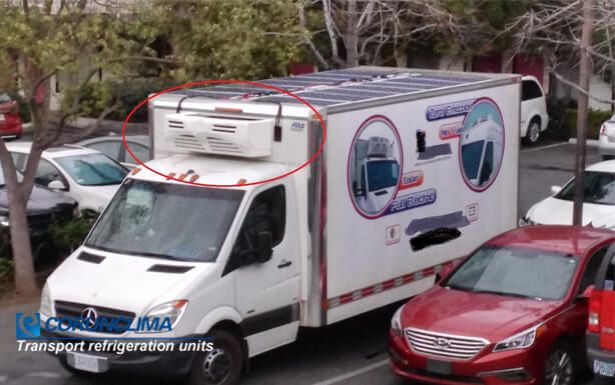

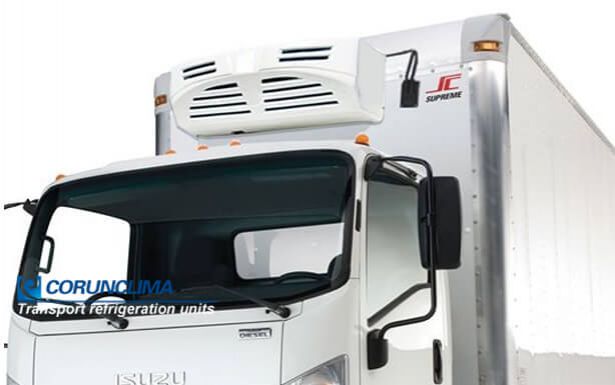

6. Refrigerated units for trucks have already installed on Sprinter, ISUZU, Hino, Dongfeng, etc full electric trucks and engine trucks.
7. Monoblock type are optional.
Model No. |
Chiller |
|
C450FB |
||
Driven |
100% DC Battery driven |
|
Temperature |
-5℃ |
|
Voltage |
DC12V/DC24V |
|
Cooling Capacity |
4500W (-5℃) |
|
Refrigerant Gas |
R134A |
|
Condenser |
Size (MM) |
1050*380*560 |
Weight(KG) |
65 |
|
Fan Qty |
2 |
|
Evaporator |
Size (MM) |
1192*700*205 |
Weight(KG) |
28 |
|
Fan Qty |
2 |
|
Compressor |
DC Brushless |
|
Controller |
Digital / in Cabin |
|
Defroster |
Optional / Hot Gas |
|
Optional |
AC-DC Converter |
Installation Kits (Hose, Drain Hose, wiring, Clamps etc included)
Ambient Temperature=38℃
If you have any questions, please contact us. We'll do our best to help.
